Capco M192 Lightweight Ground Mount Tripod

From $900.00

M192 Lightweight Ground Mount Tripod for the M249 and M240 NSN: 1005-01-503-0141

SKU: 13001669 Categories: , Tags: , .
Clear
Facebook Twitter Google Pinterest Email

Description

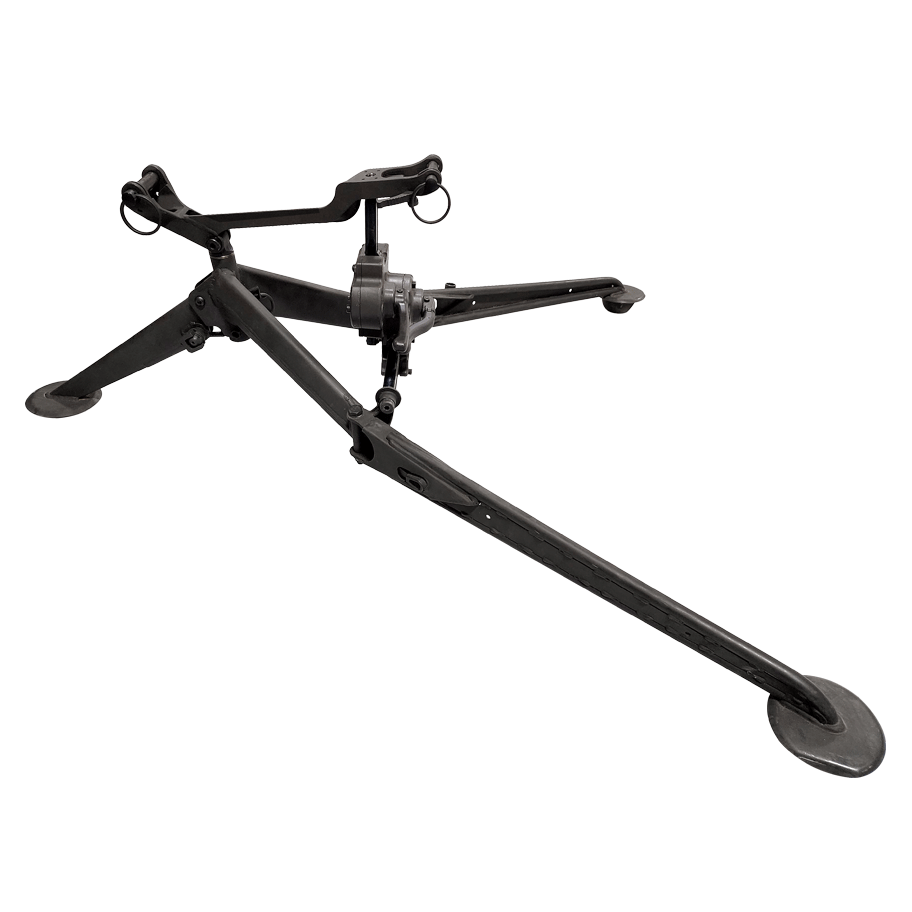

Capco M192 Lightweight Ground Mount Tripod for M249, M240B, and M240E6

Please note: Tripod marked surplus is in “Good” surplus condition.

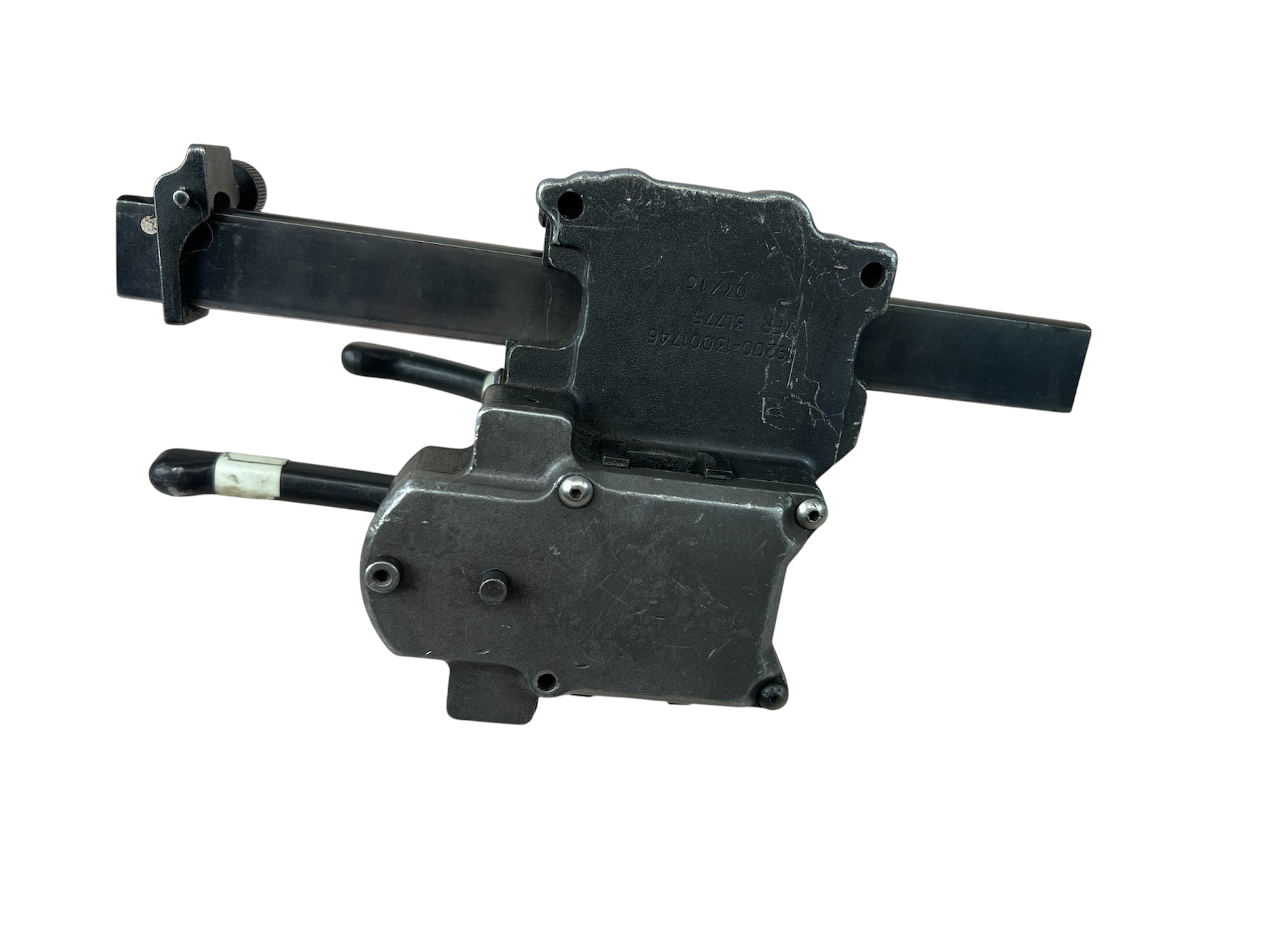

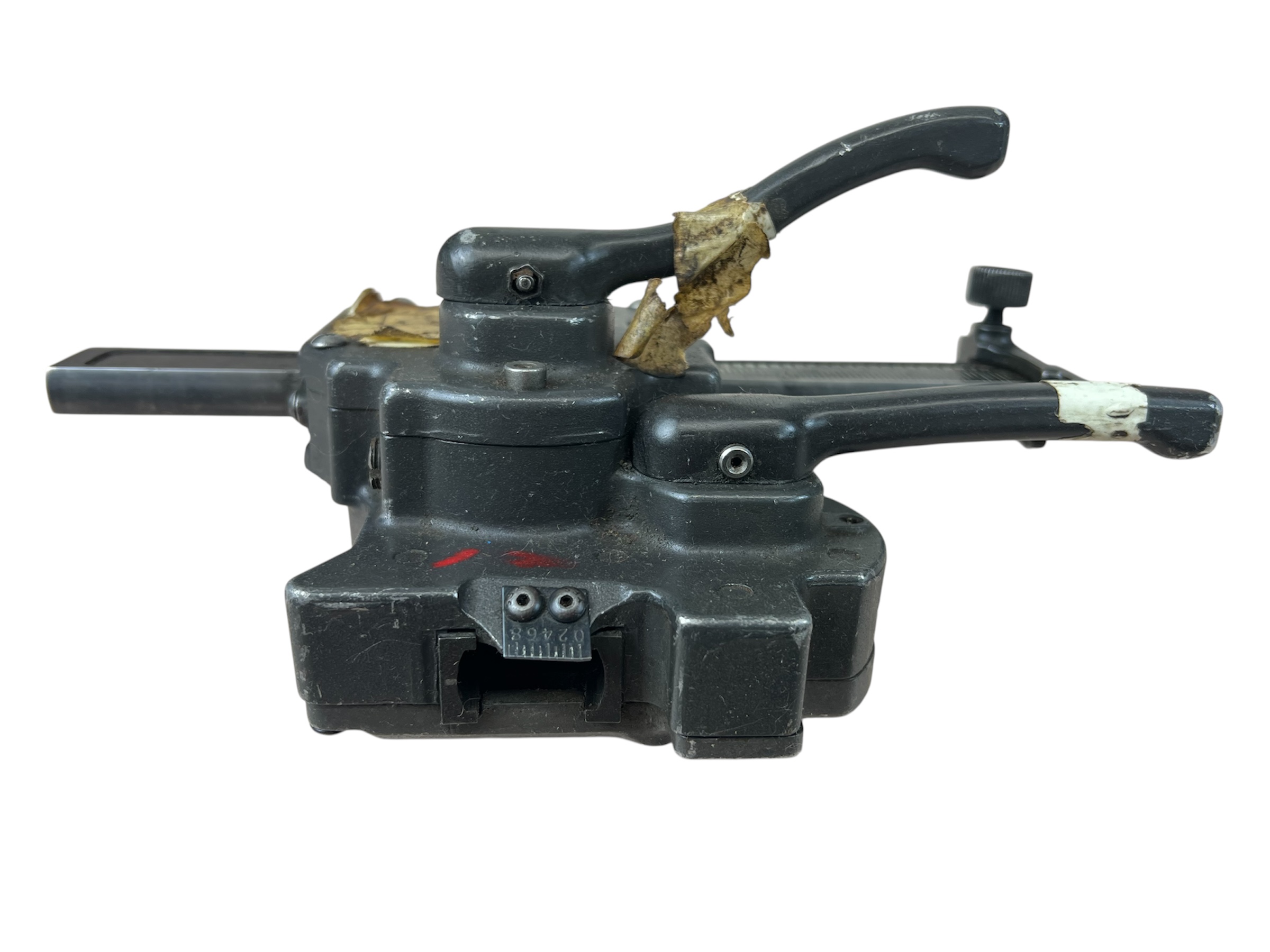

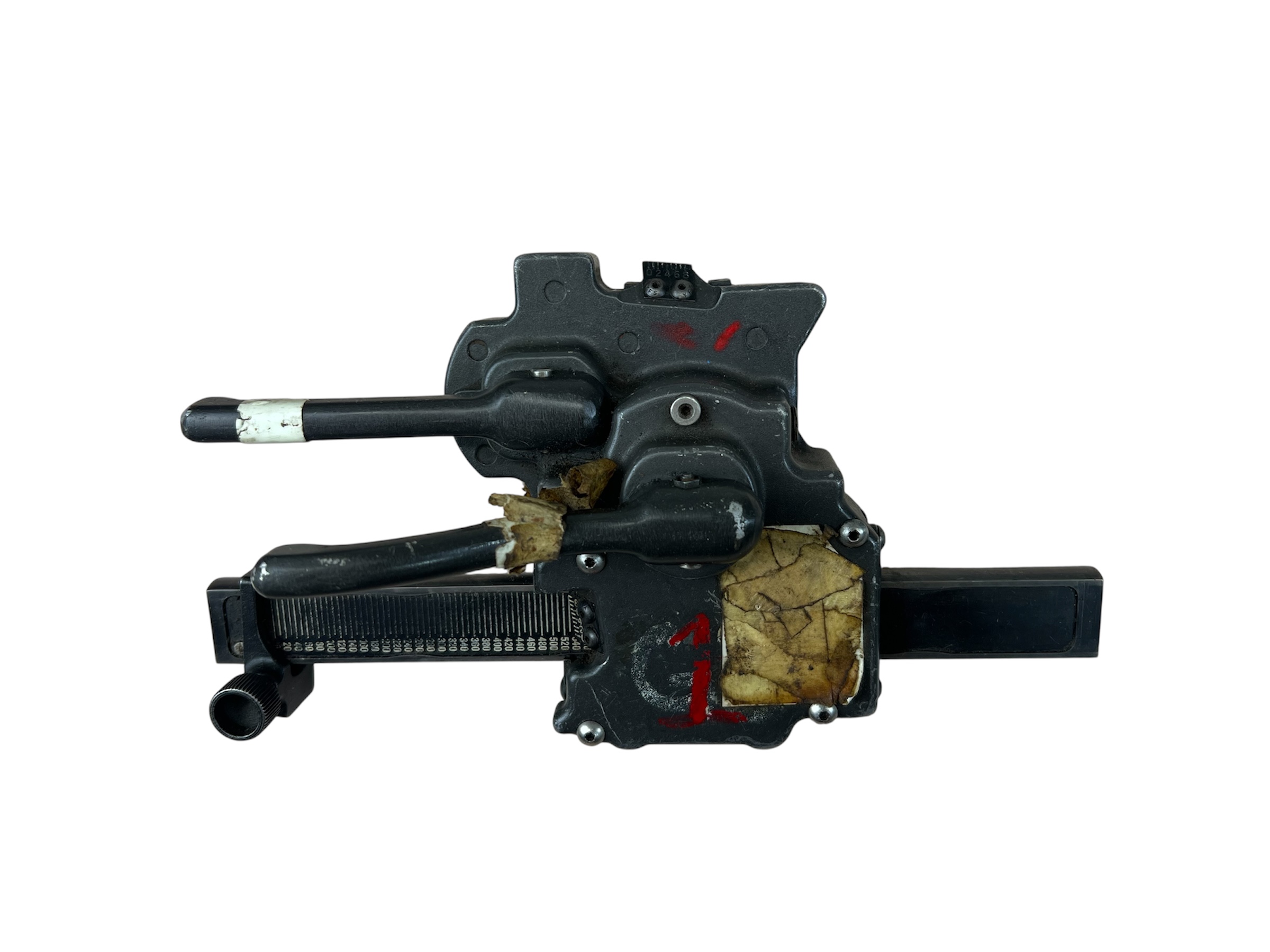

The M192 Lightweight Ground Mount Tripod is fielded by the United States armed forces. It was designed and developed by Capco, Incorporated under contract through Picatinny Arsenal to replace the M122 tripod. At 11.5 lb. (5 kg), the M192 is 6.5 lb. (3 kg) lighter than its predecessor is. Unlike the M122, its rear legs are independently movable and stored in a forward position. Because of this design, there is no need for a locking bar connecting the two legs. Additionally, the M192 Lightweight Ground Mount Tripod features an integrated traversing and elevation (T&E) mechanism. Instead of the M122’s ratcheting screw method of operation and locking traversing bar, the M192 uses a pair of levers, which unlock the gun’s position. The levers are designed to allow the gunner to make “bold adjustments” or “minor adjustments”, depending on how much pressure the gunner uses. Due to its lighter weight and different configuration, it is claimed that machine gun crews can emplace the M192 more quickly than the M122.

Capco is an industry leader in the design and fabrication of weapons mounting systems for vehicular and ground emplaced applications. Capco is proud to have designed the award winning M192 machine gun mount for use with the M240 MG and M249 Squad Automatic Weapon. In 2005, Capco received the Soldiers Choice Award for our design work in bringing the M192 to Milestone C / type classification. The United States Army named the tripod one of 2005’s top ten inventions.

NSN: 1005-01-503-0141

Additional information

Weight 11.50 lbs
Dimensions 24 × 12 × 7 in
