RH25 RICO MICRO 640 12 Micron 25mm Multi-Purpose Monocular

From $5,499.00

RH25 RICO MICRO 640 12 Micron 25mm Multi-Purpose Monocular

SKU: RH25 Categories: , Tags: , .
Clear
Facebook Twitter Google Pinterest Email

Description

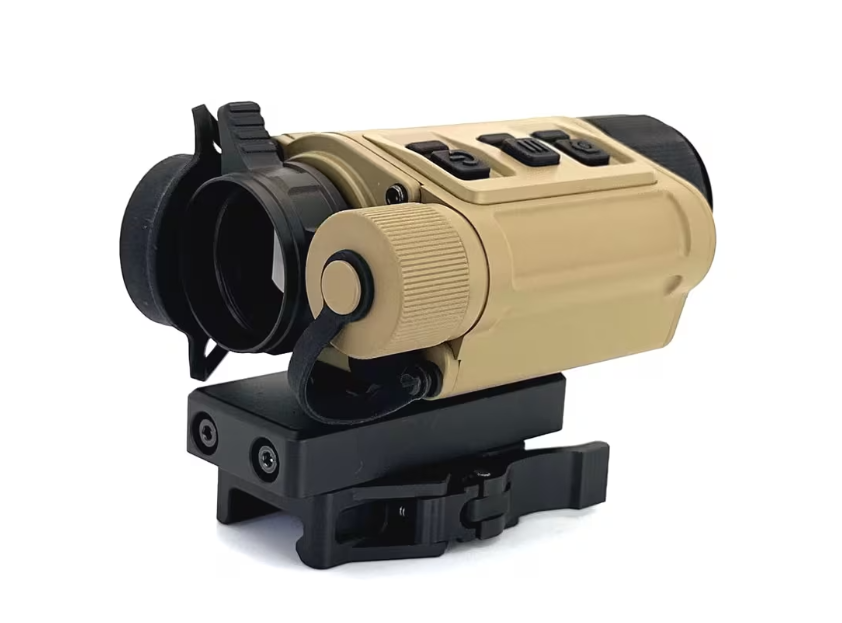

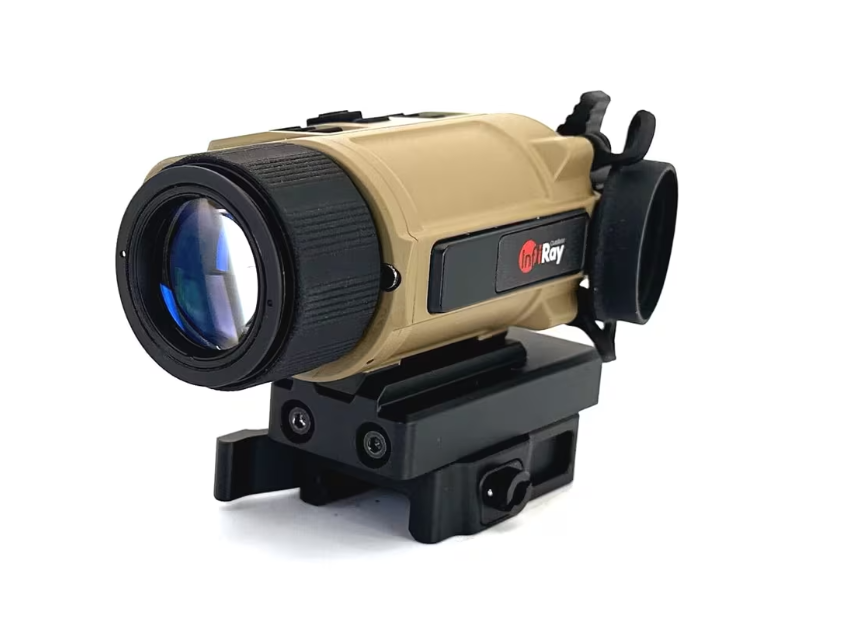

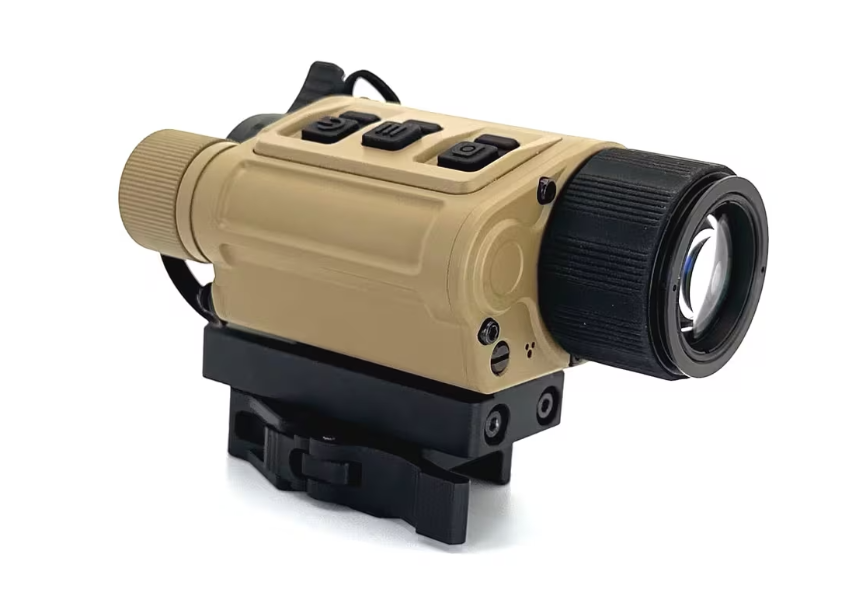

RH25 RICO MICRO 640 12 Micron 25mm Multi-Purpose Monocular

The RICO MICRO Series is an advanced electro-optic device, miniaturized for remarkably versatile functionality: handheld, helmet mount, weapon mount, and clip-on. Weighing less than a pound, the MICRO fits in the palm of your hand and is compatible with standard dovetail helmet mounts or can be used as a stand-alone weapon sight on rifles. InfiRayOutdoor is pioneering new features in helmet-mounted thermal devices, including onboard recording, video playback, and a high-definition AMOLED display. The RH25 boasts InfiRay’s latest high-performance 640×512, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens, delivering unparalleled image quality in its class.

InfiRay Outdoor’s cutting-edge manufacturing techniques and top-quality components result in an optic that leads the competition in size, weight, and performance. The RH25 RICO MICRO offers night hunters the features they desire, surpassing the capabilities of optics twice its price and size.

Not included but available: MICRO MQD MOUNT IRAY-AC36 for $199, and MICRO PICTAIL SHOE IRAY-AC52 for $129.

The iRayUSA/American Defense MQD Mount is the perfect choice for users who want to be able to swap between weapon mount and handheld or helmet mount configuration quickly and easily without tools and without having to re-zero. The PICTAIL mounting system is the combination of a standard dovetail shoe commonly used on helmet mountable night vision optics and the MIL-STD-1913 picatinny rail used on weapons platforms.

While you’re at it, pre-order the RH25 Dual Band Adapter for IC|D-14 Bridge System for RH25 and PVS-14 dual mount for QD weapon to helmet and back again!

Optics
– **Optical Magnification:** 1X
– **Digital Magnification:** 4X
– **Objective Lens Material:** Germanium
– **Horizontal Angular Field of View:** 17.5°
– **Vertical Angular Field of View:** 14°
– **Detection Range:** 1375 Yards
– **Objective Focal Length:** 25mm f/1.0
– **Objective Diameter:** 25mm
– **Objective F#:** 1.0
– **Focusing Mechanism:** Manual Focus
– **Eye Relief:** 35mm
– **Display Type:** AMOLED
– **Diopter Range:** -4 – +4
– **Display Resolution:** 1024×768

Features & Performance
– **Reticle:** 7
– **Connector Type:** “Data Cable with USB, BNC, and 7-Pin Connectors”
– **Color Palettes:** White Hot, Black Hot, Red Hot, Color
– **User-Updatable Firmware:** Yes
– **Mobile App:** Yes
– **Storage Capacity:** 64GB
– **Connector Output:** Analog
– **Picture-in-Picture:** No
– **One-Shot Zero:** No
– **Stand-by Mode:** Yes
– **Rangefinder:** No
– **Run Time:** 4 Hours
– **Power Source:** 18650 Rechargeable
– **WiFi:** Yes
– **Onboard Recording:** Video and Image
– **Image Capture:** Yes
– **Video Output:** Analog RS-170/NTSC
– **Startup Time:** <10 Seconds, Instant from Standby
– **External Power Source:** Yes, 7-Pin to USB 5V
– **Warranty:** 5 Years
– **Country of Manufacture:** China

Environmental Specifications
– **Operating Temperature Range:** -4°F to 122°F
– **Recoil Rating:** 1000 g/s² (300 Win./7mm Mag)
– **Ingress Protection:** IP67

Physical
– **Mounting Interface:** MUM rail/Picatinny STD-1913 rail, PICTAIL optional and not included
– **Housing Material:** Aluminum
– **Length:** 4.52 in
– **Height:** 2.55 in
– **Width:** 1.88 in
– **Weight:** 12.7 oz

Sensor Specifications
– **Device Technology:** Thermal Imaging
– **Sensor Type:** InfiRay MICRO II
– **Sensor Resolution:** 640×512
– **Non-Uniformity Correction (NUC):** Manual, Automatic, Semi-Automatic
– **Spectral Response:** 8-12 Microns
– **Sensor Frame Rate:** 50hz
– **Sensor Pixel Size:** 12μm
– **Thermal Sensitivity:** <50mk

Additional information

Model

MICRO MQD MOUNT IRAY-AC36

Yes, No

MICRO PICTAIL SHOE IRAY-AC52

Yes, No

MOD Armory Dual Band Adapter

Yes, No
